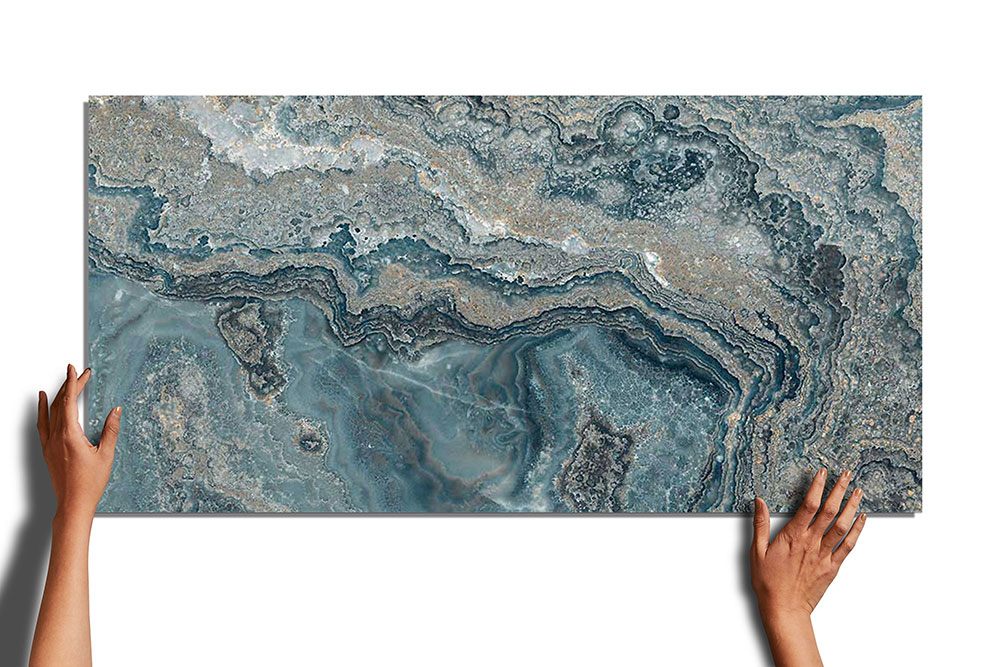

Lincoln Wave - N
Material
Glazed Vitrified Tiles
Application
wall
Collection
Size
800 X 1600 mm
Looks Like
Marble
Finish
High Gloss Exotic
Colour
Green
Qty. Per Box
2 Pcs
Coverage Area
2.56 sq mtr 27.56 sq ft / Box
Colour Variation
No. of Boxes
Total Area
Sq. Ft.
Properties
Suitable Spaces
| Application Area | Interior | Exterior | ||||
|---|---|---|---|---|---|---|
| Residential | Light Commercial | Commercial | Residential | Commercial | ||
| Floor | (Except Parking area) |
(Except Parking area) |
||||
| Wall / Façade | Use of fixing agents is mandatory. | |||||
| Pool Lining | ||||||
Technical Specification
| Sr.No. | Test Description | Standard Test Method | ISO 13006 : 2018 E Specification Bia | Nitco's Value | |
|---|---|---|---|---|---|
| 1600 mm side | 800 mm side | ||||
| 1 | Length and Width | ISO 10545-2 / EN 98 | ± 0.3 % (max +/-1.0 mm) | ± 0.06% | ± 0.10% |
| 2 | Thickness | ISO 10545-2 / EN 98 | ± 5.0 % (max +/-0.5 mm ) | ± 5% | |
| 3 | Straightness of sides | ISO 10545-2 / EN 98 | ± 0.3 % (max +/-0.8mm) | ± 0.05% | ± 0.10% |
| 4 | Rectangularity | ISO 10545-2 / EN 98 | ± 0.3 % (max +/-1.5 mm ) | ± 0.08% | ± 0.10% |
| 5 | Surface flatness | ISO 10545-2 / EN 98 | ± 0.4 % ( max +1.8 mm ) | ||
| a. Centre curvature | ISO 10545-2 | ± 0.10% | |||
| b. Edge curvature | ISO 10545-2 | ± 0.10% | ± 0.15% | ||
| c. Warpage | ISO 10545-2 | ± 0.10% | |||
| 6 | Surface Quality | ISO 10545-2 / EN 98 | 95% free from visible defects | > 95% free from visible defects | |
| 7 | Water Absorption | ISO 10545-3 / EN 99 | < 0.5%, Max 0.6% | < 0.08% | |
| 8 | Breaking Strength, N | ISO 10545-4 / EN 100 | Min 1300 N | Min. 1300 N | |
| 9 | Modulus of Rupture (MOR), N/mm² | ISO 10545 -4 / EN 100 | > 35 | > 35 N | |
| 10 | Abrasion Resistance | ISO 10545-7 / EN 154 | Report abrasion class and cycles passed | PEI III for Glossy PEI IV for Matt | |
| 11 | Thermal Shock Resistance | ISO 10545-9 / EN 104 | Resistant to 10 cycle | Resistant | |
| 12 | Crazing Resistance | ISO 10545-11 / EN 105 | No Crazing | Resistant | |
| 13 | Resistance to Acids, Alkalies and Chemicals (Except HF Acid) | ISO 10545-13 / EN 106 | No Visible effetct | No Visible effetct | |
| 14 | Resistance to staining | ISO 10545-14 | Min 3 | Min Class 4 | |
| 15 | Gloss Value (For PGVT) | > 80 | |||
